مدار چشمک زن زیبا با هیجده عدد LED
هیجده عدد LED بصورت اتفاقی چشمک می زنند

متن ترجمه نشده (ببخشید ولی اگر سوالی بود بفرمایید)

Christmas Decoration Project

Christmas Tree DecorationThis project flashes 18 LEDs at three different rates and you can use these to create a Christmas decoration of your choice. The circuit is kept simple (and cheap!) by using the 4060B IC which is a counter and oscillator (clock) in one package. The circuit requires a 9V supply, such as a PP3 battery. It will not work with lower voltages and a higher voltage will destroy the LEDs.

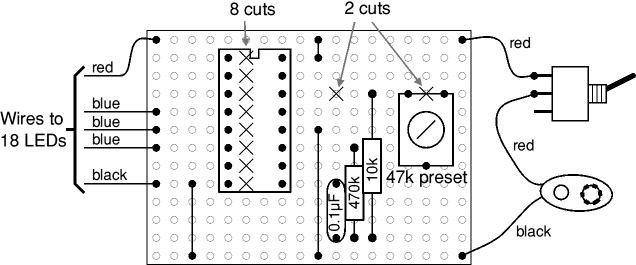

The preset variable resistor can be used to adjust the oscillator frequency and this determines the flash rate of the LEDs. The IC limits the current to and from its outputs so the LEDs can be safely connected without resistors in series to limit the current. The stripboard part of the circuit is easy to build but the wiring for the LEDs needs care so detailed instructions are provided below.

Warning!
Using a battery (or power supply) with a voltage higher than 9V will destroy the LEDs.

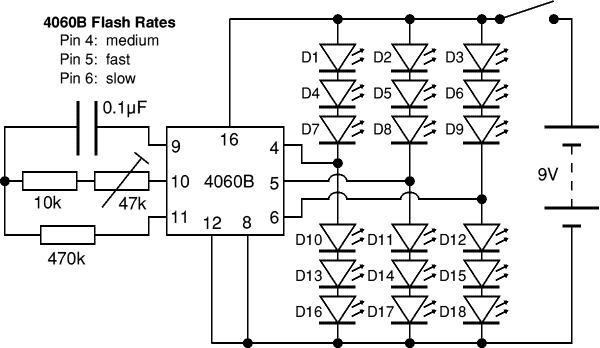

You can see from the circuit diagram (below) that 6 LEDs are connected in series between the +9V supply and 0V. Each LED requires about 2V across it to light, so using a voltage of about 12V (= 6 × ۲V) or more will make the LEDs conduct directly, regardless of the 4060B IC. With no series resistor to limit the current this will destroy the LEDs.
*********
Parts Required

resistors: 10k, 470k
preset: 47k (this could be 100k if necessary)
capacitor: 0.1µF
۴۰۶۰B IC
۱۶-pin DIL socket for IC
LEDs × ۱۸, ۵mm diameter, any mix of colours: red, orange, amber, yellow or green
on/off switch
battery clip for 9V PP3
stripboard 13 rows × ۱۸ holes
