مداری برای درست کردن تاس الکترونیکی . همانند تاس واقعی است با هر بار فشار روی کلید فشاری , چند تا از ال ای دی ها روشن می شوند که نماد خال های تاس هستند . تصویر متحرک را ببینید متوجه خواهید شد .

متن ترجمه نشده (ببخشید ولی اگر سوالی بود بفرمایید)

Dice Project

DicePress the push switch to ‘throw’ the dice: this makes the circuit rapidly cycle through the dice numbers so that an effectively random dice number is displayed by the LEDs when the push switch is released.

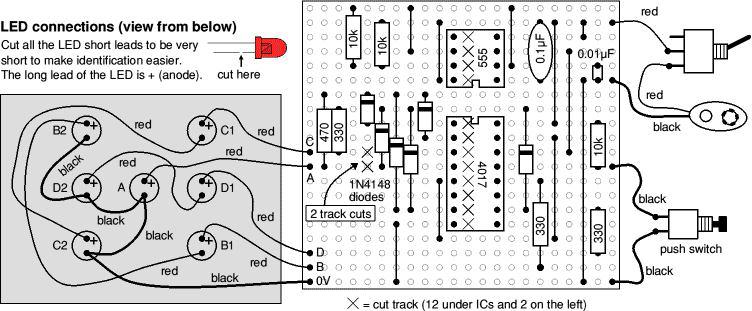

Drill seven 5mm holes in a dice pattern to mount the LEDs on a panel such as a plastic box lid or sheet of thin plywood. They should be a tight fit but a little glue can be applied from the underside if necessary.

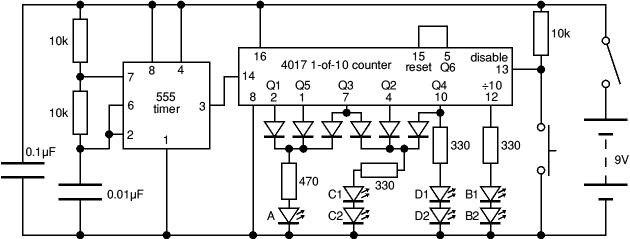

Dice project sequenceThe 555 astable circuit provides clock pulses at about 5kHz for the 4017 counter which has ten outputs (Q0 to Q9). Each output becomes high in turn as the clock pulses are received. Only six counts (Q0-Q5) are needed so Q6 is connected to reset. Appropriate outputs are combined with diodes to supply the LEDs: for example Q1, Q3 and Q5 are combined for LED A.

The dice sequence has been started at 2 so the ÷۱۰ output can be used for LEDs B1 and B2, this saves diodes and simplifies the circuit. Pressing the push switch makes the disable input low so that counting occurs.

لیست قطعات :

resistors: 330 ×۳, ۴۷۰, ۱۰k ×۳
capacitors: 0.01µF, 0.1µF
diodes: 1N4148 ×۶
LEDs: red 5mm diameter ×۷
۵۵۵ timer IC, such as NE555
۴۰۱۷ counter IC
DIL sockets for ICs: 8-pin, 16-pin
on/off switch
push switch
battery clip for 9V PP3
stripboard: 20 rows × ۲۲ holes
