Motionless electromagnetic generator (MEG)
The Motionless electromagnetic generator works on the principle of the interaction of the steady and alternating magnetic fields. This mechanism allows to generate free energy from a suitable system incorporating a strong magnet in a magnetic circuit. This type of generator is called motionless because, unline the other electromagnetic electricity genetators, it contains no moving parts and has completely solid state design. This feature also leads to a very long life time. The new resonance design of this generator also can turn the overunity machine, that only has the output power higher than the input power, into an independent system with no power source.
Motionless electromagnetic generator (MEG) is a very interesting and relatively easy to build type of a free energy generating device. In last ten years the DIY (do it yourself) prototypes of this topology of free energy genetaros appeared. For decades, the builders had to deal with a big problem – the lack of magnets strong enough to turn the experimental device into a really useful system capable of generating a practical amount of power. The first prototypes made with ferrite magnets were very large and generated only a small amount of power ant thus they were very impractical. After the invention of neodymium magnets (magnets made of iron, neodymium and boron alloy) this design became more practical, as the range of magnetic induction generated by neodymium magnets is order of several magnitudes higher. The progress of the magnet industry contributed the most to the practical applicability MEG’s.
In last decade, first succesfull experiments with the MEG were made in amateur enviroment. Unfortunately, most of them were never published or patented. There is also a severe patent restriction in this area of science. I have built a small but functional prototype enough to demonstrate the principle of this free energy generator type and to show that even something that was previously condemned by professional scientists can success. It is worrying that idea was condemned without sufficient research, just on the basis of the results of research conducted nearly a hundred years ago.
No further experiments on a professional level have been performed simply because the idea was too notorious, and has become synonymous with pseudoscience. No professional research could be done simply because it is simply told to have nothing with professional research. It is funny that the “professional” scientist today better do research on Woodpecker’s method of obtaining food to his intelligence, rather then on methods of generating energy in times of its big defficience. But there are also interest groups that are more interested in ways of generating money than generating energy itself. This is easy to understand, as selling the energy itself is much better and permanent way to make money compared to selling the machines that generate the energy. Generating the energy the traditional and dirty way while consuming a lot of resources also greatly helps to justify its very high price.
The basic principle of the Motionless electromagnetic generator (MEG) is the interaction berween the magnetic field generated by a permanent magnet and the one generated by the electic coil. As you probably heard before, due to the Lenz law the steady magnetic field of the permanent magnet itself cannot induce electric current in a coil. On the other hand, the alternating magnetic field produced by a moving magnet or another electric coil can induce the current. But to move the magnet or power the another coil you need energy. Magnet does not need energy source. This is why the interaction of two magnetic fields was chosen. The otionless electromagnetic generator magnetic system consists of 3 important parts: input coil, output coil and a magnet. There are two magnetic field sources: the magnet and input coil. The input coil can generate alternating magnetic field, but it consumes power. The magnet does not consume power, but it generaters steady magnetic field. The solution of the problem is in the interaction of those two magnetic fields. The magnetic field of the coil is superimposed on the magnetic field of the magnet. Their power is added. As the coil generates alternating field, the strength of the field is changing. The sum of those two fields is thus also changing and so it can induce current in the output coil.
As the fields are being added, the output power is higher than the input power. The system becomes overunity. For long time, the system has been built only in this version. It was necessary to supply the power into the input coil to get power from the output one. It was not possible to connect the coils together because there is also a lot of reactive power consumed by the input coil, ruining the overunity state. Also the output coil was not fully utilized due to its inductive nature. Finally, this problem was solved by adding the resonance capacitors to both of the coils. Another problem appeared when researchers were trying to connect the coils together to make an closed loop system – there was nothing to determine the direction of the power circulation. There is no difference between the input and output coil. This problem was solved by adding tho power silicon diodes between them. The diodes effectively directing the power inside the overunity system.
My Motionless electromagnetic free energy generator is using three column magnetic core made of iron sheet. Iron core has the advantage over the ferrite core in much higher permeability, so that the magnetic losses are lower. My coils have 7 turnseach. This system generates 12V and maximum powerwas slightly over 60 Watts.I used neodymium magnet from and old hard drive. The diodes are rated 3 Amps and 1000 Volts, but the voltage rating seems to be an overkill. The capacitors are 470 nanofarads, rated 250 Volts AC.The system is being started by connecting 9V battery to the input coil. 6 pcs of AA battery can also be used. It seems that the overunity ratio is more than 12/9 as 9V impulse is enough to start the 12V system. It is also necessary to note that the output voltage is alternating (AC).
The expected life of this free energy device is very long due to the motionless construction. It is a nice free electricity source of low to medium power levels. The construction of generator of higher power and higher voltage is also possible, but may be dangerous. The output frequency can also be unstable and can differ from the mains one.
Before doing anything, read the Disclaimer first.
http://free-energi.com/6_01.jpghttp://free-energi.com/6_02.jpg
The Motionless electromagnetic generator (MEG) before startup and the MEG startup using a 9V battery.
http://free-energi.com/6_03.jpg

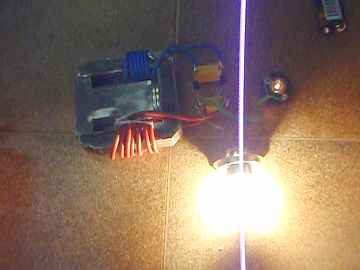

The Motionless electromagnetic generator of free energy in operation.
http://free-energi.com/6_04.jpghttp://free-energi.com/6_05.jpg

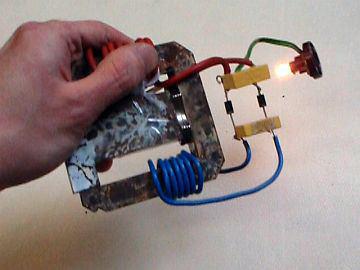

The Motionless electromagnetic generator working prototype held in hand (left photo). The generator powering a 12V 60W light bulb (right photo).
